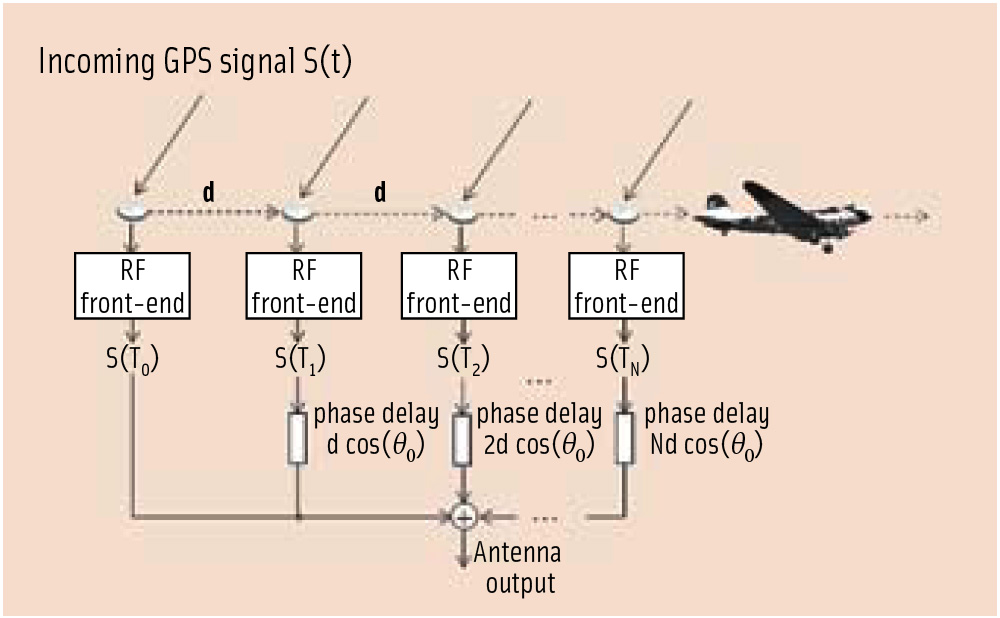

Figure 3: Synthetic Aperture GPS Signal Processing

FIGURE 3: Synthetic generation of a one-dimensional phased array: an incoming GPS signal is down-sampled by the GPS receiver RF front-end; signal samples that correspond to different spatial antenna locations are combined to generate a synthetic phased array; phases of individual samples are adjusted to steer the array’s beam in the direction of the incident angle of the GPS satellite signal θ₀.
