Technical Article • May/June 2009
MM-Figure 11.jpg
(Click image to enlarge.)

Figure 11: Modernization Milestone

Issue Home • Past Issues

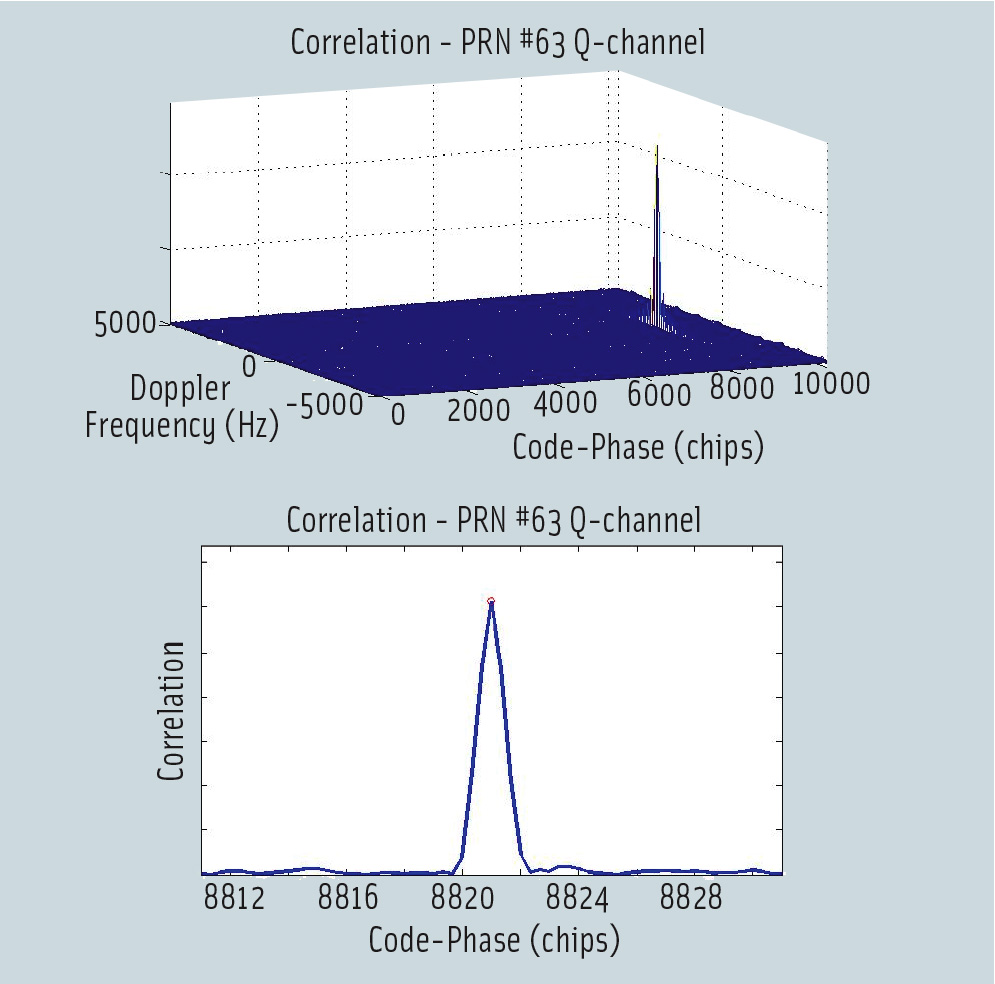

FIGURE 11: Acquisition plot of SVN 49 L5 signal with five milliseconds of coherent integration. The data used in the plot were logged at 5:30 a.m. PDT on April 10, 2009. The triangular correlation peak clearly visible in the right-hand panel verifies the BPSK modulation of the signal. Only the quadrature channel contains signals, not the in-phase channel.

Share via: SlashdotSlashdot   TechnoratiTechnorati   Figure 11: Modernization Milestone (Inside GNSS)TwitterTwitter   FacebookFacebook

Return to main article "Modernization Milestone"
