Figure 2: Modernization Milestone

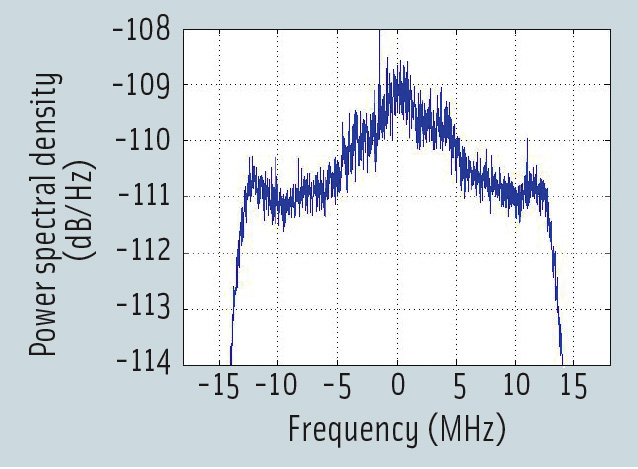

FIGURE 2: The very first snapshot of the L5 spectrum of GPS SVN 49 satellite, captured at 5:00 a.m. PDT on April 10, 2009, at Stanford, California. Satellite elevation was 64 degrees and azimuth was 305 degrees. The Woodside DME was arranged to be off.
